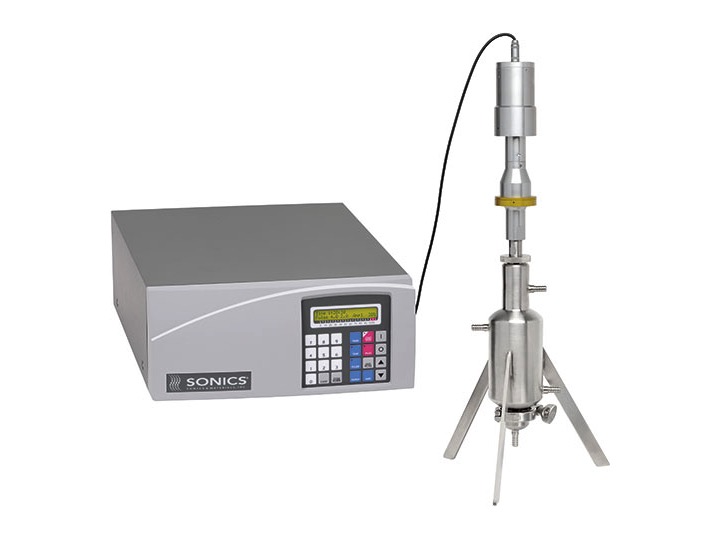

SONICS VCX 1500 HV – Ultrasonic Processor for Large Volume and Industrial Applications

1500 Watt Ultrasonic Processor and High Volume Continuous Flow Cell with typical throughput rate of 100 liters/hour – variables being viscosity and desired degree of processing. Designed primarily for industrial mixing, including large scale processing of nano-materials; industrial processing, including emulsifying, degassing, and large scale dispersions. The flow cell is easily disassembled for inspection and cleaning and is water jacketed to enable the sample to be cooled/heated while it is being processed.
– Over 20 liters on a flow through basis
– Energy and temperature set-point control
– Automatic tuning
– Digital wattmeter
– Full function process timer
– Remote process capability
POWER SUPPLY VCX

1500 HV2-220

AIR COOLED CONVERTER

Part No. CV 294
Piezoelectric lead zirconate titanate crystals (PZT)

BOOSTER

Part No. BHNVC21
Increases the amplitude by a factor of 2.

HIGH VOLUME CONTINUOUS FLOW CELL

Weight: 12 lbs. (5.5 kg) Height: 19.6" (498 mm) Width: 15" (381 mm)
Housing: 316 stainless steel. Quick opening clamp
Probe: Solid – Part No. 630-0619 – Titanium alloy Ti-6Al-4V
Operating pressure: Up to 50 psi (345 kPa/3.45 bar)
Volume of liquid in chamber with probe in place: 500 ml.
Tubing required: 1 ⁄4" (6 mm) inside diameter
Part No. 630-0683

TOOL KIT

Supplied with two spanner wrenches
Part No. 888-00015
