| Model / Dimension (mm) | Model 1: HLFT 1000 Model 2: HLFT 1200 Model 4: HLFT 1800 Model 2: HLFT 1200 |
|---|---|
| Air Cleanliness | > ISO Class 4 (Class 10) |
| Noise Level | Very gentle and low noise : |
| Air Flow (m3/hr) | HFTL 1000 : 950 m3/hr |
| Air Speed | > 0.4 m/sec |
| Power Consumption (Watts) | HFTL 1000 : 65 Watts |

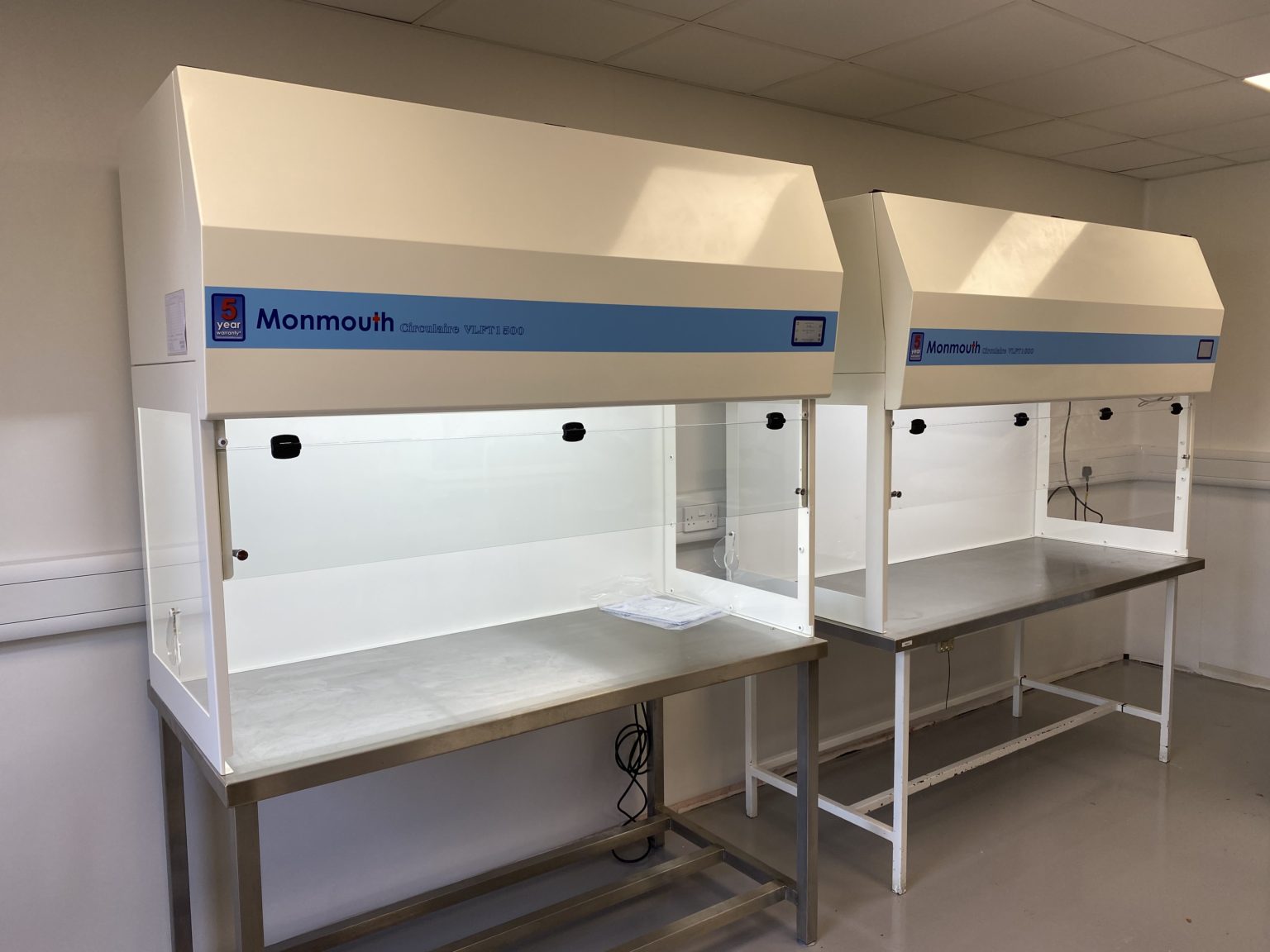

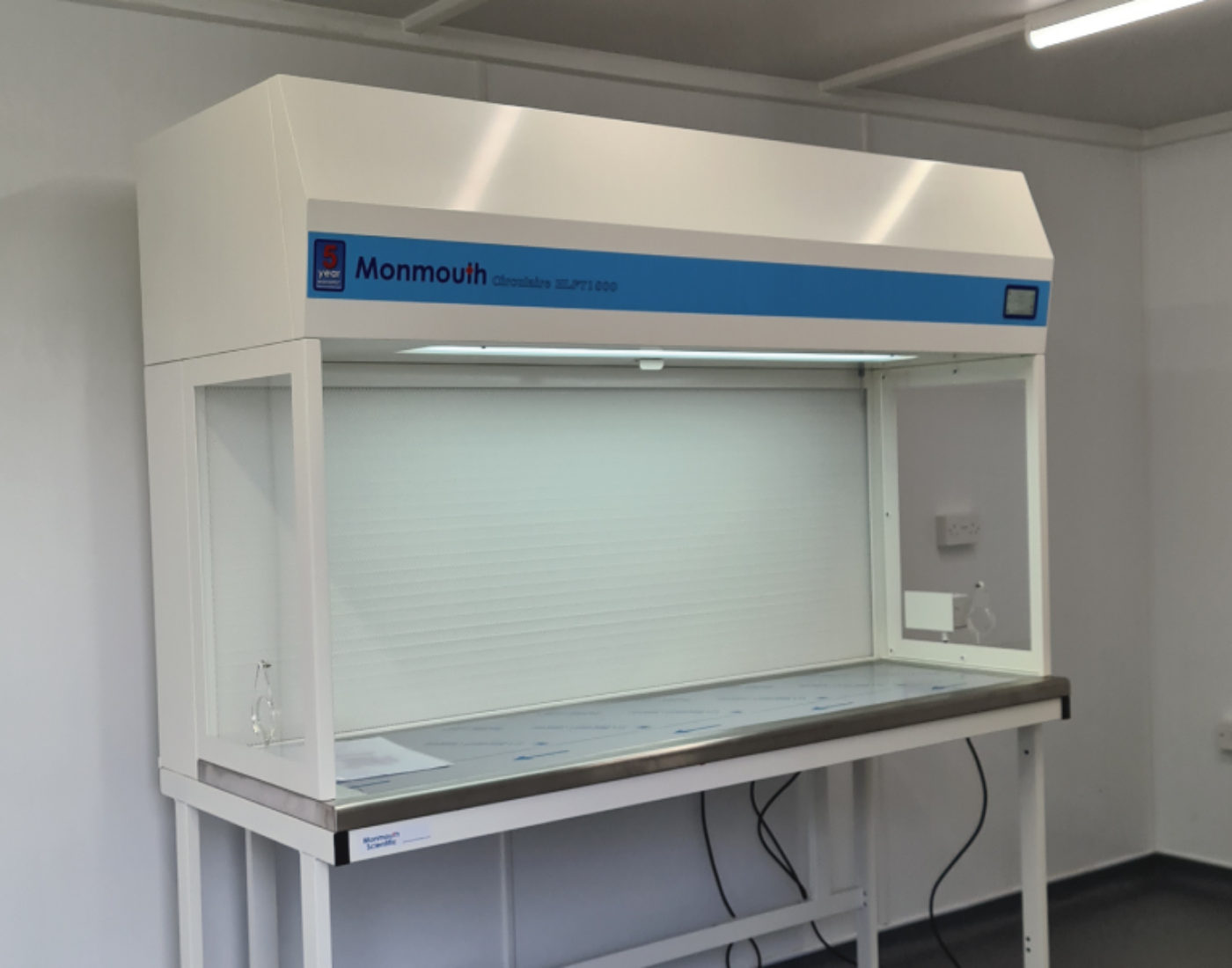

Circulaire Horizontal Laminar Flow Cabinet
The Circulaire® Horizontal Laminar Flow Cabinet
Offers clean air to ISO Class 4 (Class 10) using U15 ULPA particulate filters for the very best in product protection.
As standard, the cabinets conform fully to BS EN ISO 14644 & BS EN 1822 and are fitted with the latest digital fans to ensure low noise and low energy consumption. Efficiency is improved further with the use of internal LED lighting and PIR movement sensors to shut off all non-essential electronic items when the cabinet senses a period of inactivity.
- Airflow Monitoring in m/sec or ft/min.
- Audible and highly visual alarms should levels exceed specified limits.
- As standard, the cabinets conform fully to BS EN ISO 14644 and BS EN 1822.
- The Large Working Aperture allows for easy work area access.
- Visionaire® Touchscreen Control System monitors of all aspects of operation.
- Optional UV light with electronic interlocked night door offers ultimate operator safety.
- U15 ULPA Particulate Filter
The cabinets are constructed from Zintec mild steel that has been epoxy coated to prevent corrosion. A solid 316-grade stainless steel work surface is provided as standard with a rolled front edge for comfort.
The range is also fitted with the latest digital high-performance fans to ensure low noise operation and low energy consumption.
The cabinet uses a fraction of the power consumption of rival models. Energy efficiency is improved further with the use of PIR movement sensors to shut off all non-essential electronic items when the cabinet senses a period of inactivity.
Overhead high intensity LED lighting is provided as standard (>1000LUX) to ensure even illumination of the working area.
