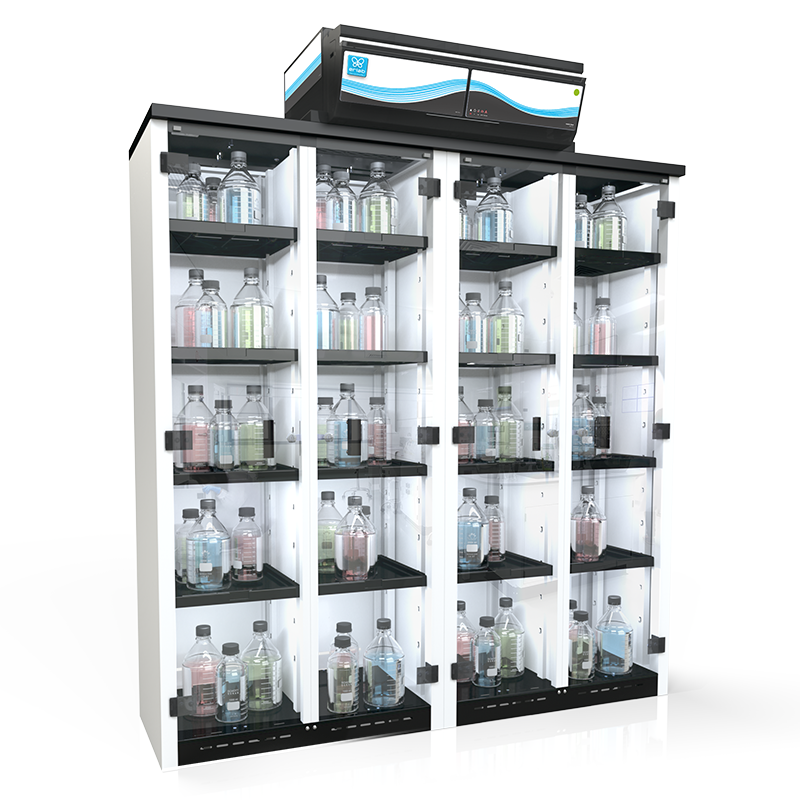

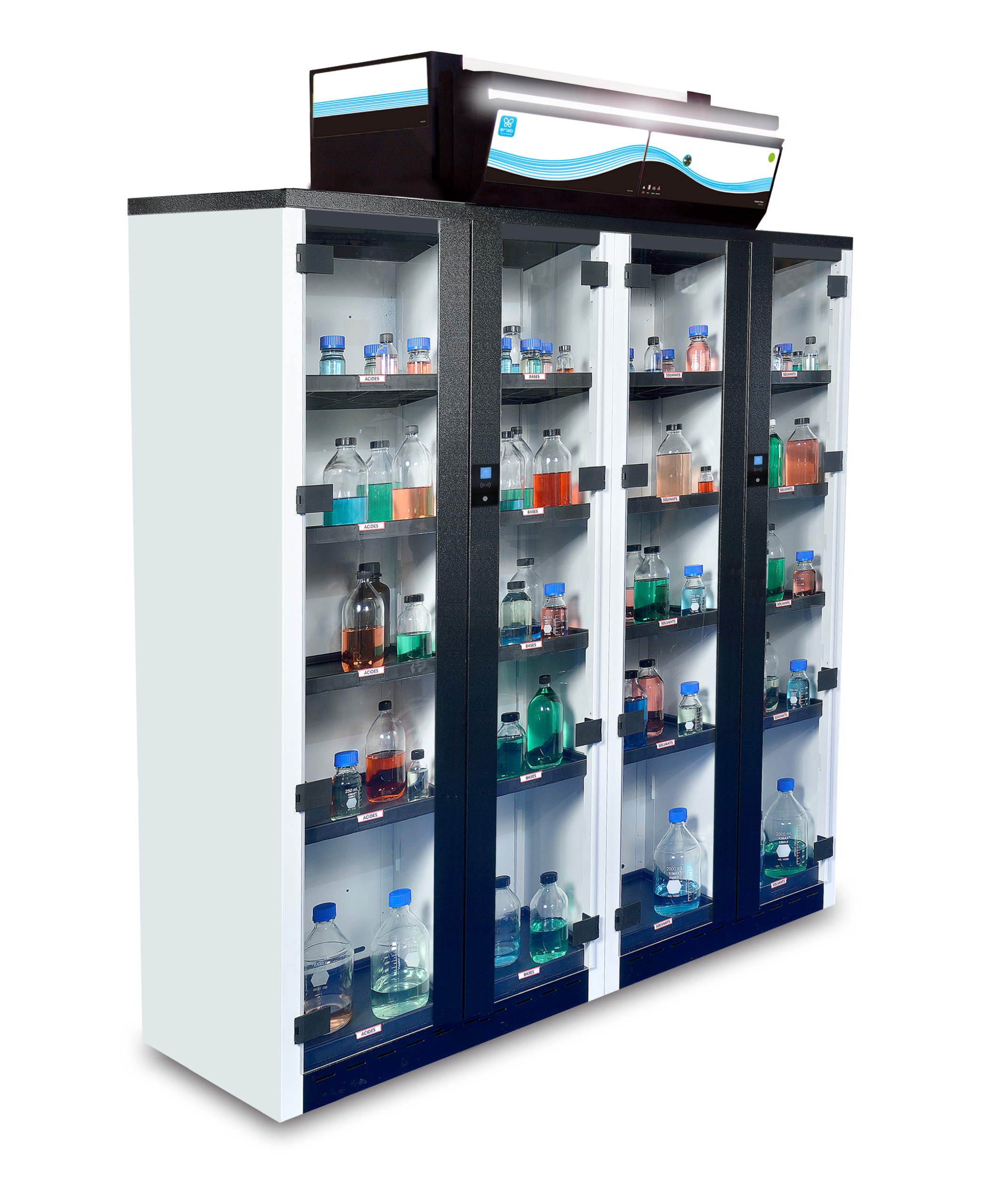

Erlab 1634 Smart Chemical Storage Cabinet, with shelves and standard doors

SKU: # 1634/1111

Erlab Captair 1634 Smart Chemical Storage Cabinet come with 4 doors and double key locks system.  This multi-risk chemical storage cabinet provide option for shelves and transparent doors.

Safer to Operate

Erlab Captair 1634 Smart is the largest chemical storage cabinet with capacity to store up to 320 bottles of 500 ml chemical.  1634 Smart adopted exclusive Erlab filter technology, that approved by  AFNOR NFX 15-211 and SEFA 9 filtration efficiency standard (classes 1 and 2).  The configurable filtering system can be adapted to filter gases, solvents, powders and particulates keeping the user, chemical and the laboratory are protected with efficiently recirculating air within the room, free from any toxic hazardous chemicals.  It achieves optimum air change per hour, to ensure the chemicals is store and segregate in a safe conditions.

Simpler to Use

Built-in Smart Technology enables visual light and audio communication to indicate the status of the hood.  To alert you, the light will pulse, an audio pattern will indicate if : door left open, Fan Failure and Filter Breakthrough.


Easy installation and fast relocation.  1634 Smart also provide two type of possible configurations : Double doors and shelves or/and Pull-out doors with storage trays.

Energy Savings

Designed to operate 24/7 to protect the user and chemicals.  Energy consumption of the Erlab Captair 1634 Smart Chemical Storage Cabinet is only 65 W.

Storage Capacity (500ml/bottles)

up to 320 bottles (double doors type)

External dimensions (L x D x H) (mm)

1802 x 530 x 2172-2358

Volume of air treated

220 m3/hr (130 cfm)


Connection to main power : 240 V – Internal circuit : 24V-DC/50-60 Hz

Enclosure Material

Doors in clear transparent chemical resistant acrylic and body in electro-galvanized steel coated with anti-acid polymer

Filtration Modules

Made of injected Polypropylene

Compliance with applicable world safety standards

AFNOR NFX 15-211:2009: France – JG/T 385-2012 : China – SEFA 9 : USA – BS 7989 : England – DIN 12 927 : Germany – EN 1822 : 1998 (HEPA & ULPA) – CE Marking

Storage options and doors type

4 storage compartments with 5 adjustable PP shelves each with retaining tray and 4 hinged transparent doors
Total shelves = 20 pieces

Filter Technology

Patented modular flexible technology consisting of multi-layer filtration columns to store liquid and powder chemicals.

Filter revolving technology

2 identical molecular filters located below and above a fan/detection chamber ensuring no chemical escape when the lower layered filter reached its saturation. Upper layered filter will replace the saturated lower layered filter. Upper layer will be replaced with a new molecular filter.

Safety Lock

Double locks system with two keys, to protect the chemicals from stolen

Molecular filters efficiency

<1% of the PEL-TWA of the handled chemicals released downstream the filtration system

Filter capacity

Erlab chemical listed of over 600 chemicals indicating the molecular filter capacity at 1% of the PEL-TWA of the chemicals.

Safety Alert System

Patented "Smart" technology consisting of safety alerts by LED pulsation and coded sounds to express the fan failure, door left open or filter saturation/ breakthrough

Filters Saturation detectors (option)

Molecode S for saturation detection by solvents
Molecode A for saturation detection by acids
Molecode F for saturation detection by Formaldehyde

Tests Certificates and Reports

Intertek (NFX 15-211)
Tongji University (JG/T 385-2012)
Golder Associates (ISPE OEB Containment Test)

Fan double speed control

double speed setting for fan, while the door is closed and another while open. To ensure the chemical vapours are remove when the user open the door to retrieve the chemicals.



Carbon Filters for gases and vapours

GF4AS : for organic vapours (acid vapours secondary)
GF4BE+ : for organic vapours and acid vapours
GF4F : for formaldehyde vapours
GF4K : for ammonia vapours

HEPA filter for powders

HEPA H14 filtration efficiency : 99.995% according to MPPS method, EN1822 standard


40% filtration efficiency for particles >0.3 micron
