| Syringue capacity | 1 000 µL |
|---|---|
| Autonomy in disinfection (in normal mode) | 1000 cycles (2L bottles) |
| Autonomy in distilled water (in normal mode) | 600 cycles (2L bottles) |
| Pressure in the stylus | up to 8 bars (Patented) |
| Exponential plating mode (Spiral mode): Petri dish diameters Ø available: | Ø 90 mm |
| Circle plating mode: Petri dish diameters Ø available: | Ø 90 mm |
| Counting range | from 300 to 1.3×105 CFU/mL |
| Preset dispensed volumes | 50 µL et 100 µL |
| Successive plating capacity with the same sample | up to 20 Petri dishes (50 µL) |
| Time for 1 sample intake + 1 disinfection + 1 plating | 25 s |
| Controlled by a microprocessor | YES |
| All stainless steel | YES |
| Disinfection process | YES |
| Sampling from beakers (DB50) | YES |
| Dimensions (w x d x h) | 40 x 41.5 x 29 cm |
| Weight | 16.4 kg |
| International protection marking | 10 |
| Warranty | 1 year |
| In compliance with | ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual) and AOAC 977.27 |
| Including | Delivered with: 1 turntable ring for Ø 90 mm Petri dishes, 1 blue dye for testing, 1 syringe with silicone tubing, 1 Spiral counting grid for Ø 90 mm Petri dishes, 1 container stand for testing, 1 set of 2 filters, 1000 DB50 beakers, 1 EnzyClear liquid detergent, 4 connection kits for GL45 bottle, 1 double connection kit for GL45 bottles, 1 stylus, 1 power cable, 1 user’s manual, 1 EnzyClear quick user guide |

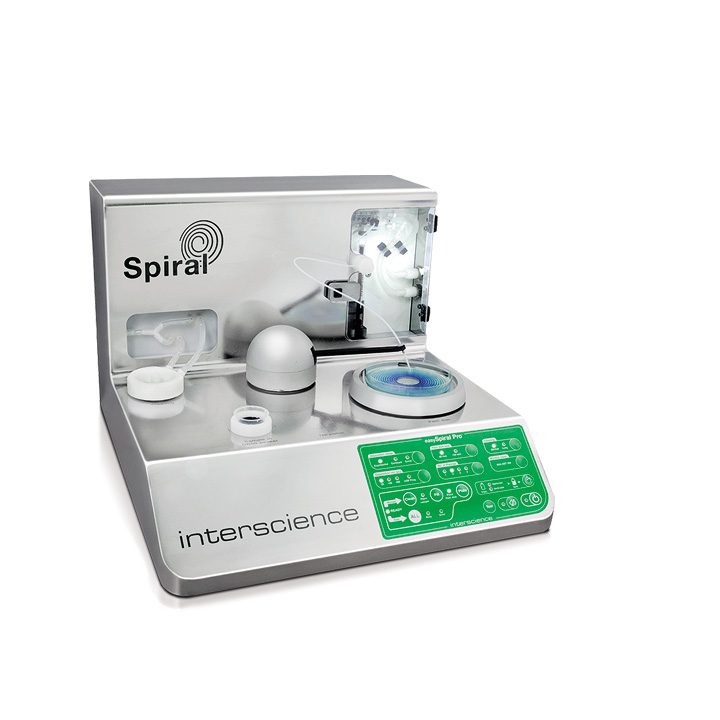

Automatic plater, easySpiral
easySpiral is an automatic plater of Petri dishes. It allows plating of a sample with 300 to 1.3×105 CFU/mL on one Petri dish, without prior dilution. Plated volumes are of 50 and 100 µL.
The Spiral method
With the Spiral method, increase your analysis capabilities: without intermediate dilutions, perform standardized automatic plating with a counting range from 100 to 1 x 107CFU/mL on 1 single Petri dish !
Consumables: savings up to 75%
The exponential plating mode with easySpiralreduces your consumable budget and waste volumes. You will enjoy more space in your lab too! The easySpiral plater has no specific consumable needs.
One touch plating
Plate easily and quickly your 90 mm Petri dishes. Choose from 2 plating modes: exponential and circle.
Exponential mode
The exponential mode is a plating in surface with a decreasing surface concentration. Plate 50 µL or 100 µL volume.
Obtain a countable Petri dish from 300 to 1.3 x 105 CFU/mL
High accuracy glass syringe
Typical accuracy of glass syringe is 0.5 %.
Higher accuracy than an ordinary pipette and no more pipet calibration.
Automatic disinfection
Overflow technology cleaning system and stylus disinfection. A light is activated in case of empty disinfecting liquid.
PATENTED
High speed automation
The fast rotating arm adapts itself to all types of agar without risks of ploughing. It makes it possible to obtain a plating in 25 seconds (disinfection + sample intake + plating).
PATENTED
Applications
easySpiral platers are used for all types of microbiological analyses in the food, pharmaceutical, cosmetic and public research institutes …
