ULT LRA Fume Extractor for Soldering Fumes

SKU: # ULT LRA

Soldering Fume is Anything but Harmless

An automated electronics production line creates many thousands of solder joints per hour, a craftsman will perhaps only make ten of them in the same time. However, all soldering processes emit fume and this fume is anything but harmless.

Soldering fumes

Substances that are perceived as soldering fumes are decomposition products from flux, soldering alloys and residues of cleaning agents, which often join up to tacky aerosols. These airborne pollutants may impose adverse effects on human health, therefore, legal regulations on the removal of soldering fumes from the air at workplaces are strict. It is about human health, but not only: those airborne pollutants also compromise machinery and products as they create firmly attached dirt layers.

Fume extraction technology

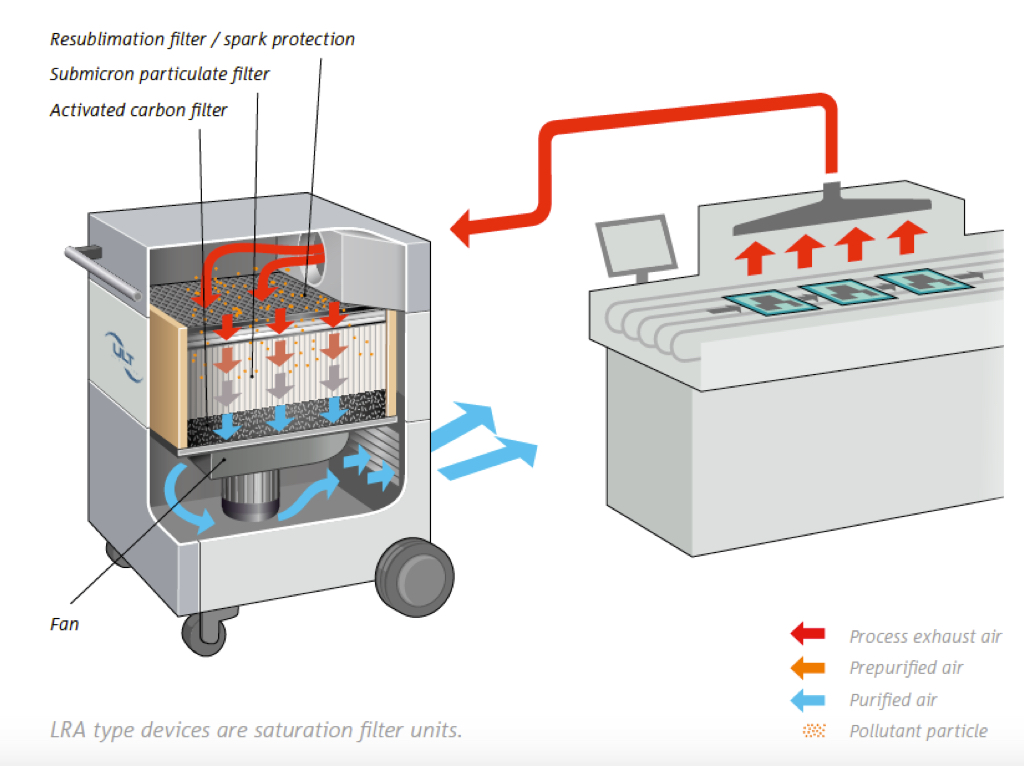

ULT’s LRA type extraction and filtration technology removes soldering fumes reliably without residue from the air at the workplace. Available are units for individual workplaces, where low footprint and freedom of movement are of great importance.

In addition, ULT offers solutions for automated and semi-automated soldering processes, where it is about long service life and highest availability as, for instance, in electronics production.

Typical fields of application

  • Wave soldering machines
  • Reflow ovens
  • Selective soldering machines
  • Robotic soldering cells
  • Laser soldering machines
  • Vapor phase soldering machines
  • Manual soldering workstations
  • Semi-automated soldering processes

ULT LAS system offers various air flow capacity (m3/hr),  customisable solution to handle laser fumes

Contact Us for Site Visit & Free Consultation !



Soldering Fume Extraction Models

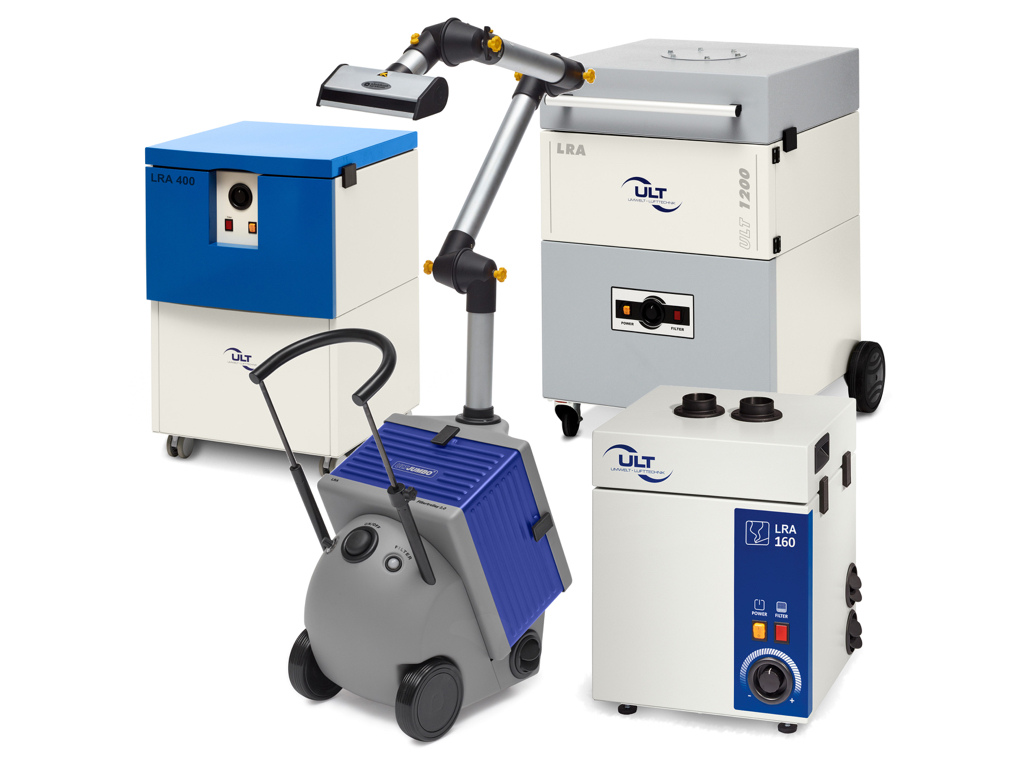

ULT’s solutions range from mobile equipment for individual work places to automated production :

Model 1 : LRA 160
i. Max Vol. Flow – 190m3/hr
ii. Max Vacuum – 320 Pa
iii. Nominal Capacity – 80/ 1,900 (m3/hr at Pa)

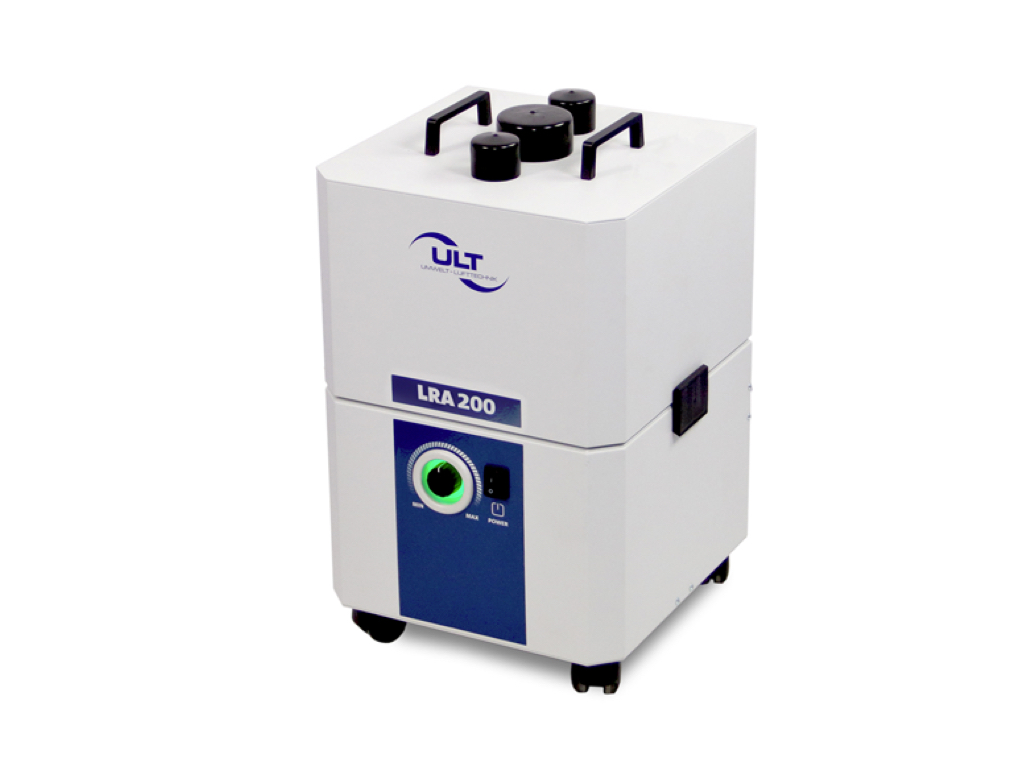

Model 2 : LRA 200
i. Max Vol. Flow – 635m3/hr
ii. Max Vacuum – 3,200 Pa
iii. Nominal Capacity – 250/ 2,000 (m3/hr at Pa)

Model 3 : LRA 400
i. Max Vol. Flow – 1,500m3/hr
ii. Max Vacuum – 3,250 Pa
iii. Nominal Capacity – 600/ 2,500 (m3/hr at Pa)

Model 4 : LRa 1200
i. Max Vol. Flow – 1,500m3/hr
ii. Max Vacuum – 3,250 Pa
iii. Nominal Capacity – 1,000/ 1,700 (m3/hr at Pa)
