Features
● The newly designed dedicated DC brushless motor is compact yet realizes high output with low cogging, low vibration, and low noise.
● Excellent rotational accuracy, low eccentricity, and high torque. Choose from three rpm ranges. The belt drive is suitable for long hours of operation.
● The thermal protector operates to protect the product itself from heat generated by the motor during an overload or prolonged operation.

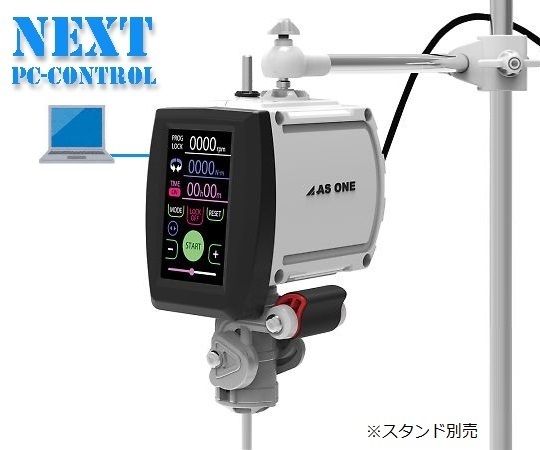

● The PC control type can be linked to control applications and controlled from a Windows® PC (via USB) for logging, program settings, etc.
Order No. 4-2087-01
Rotation Speed : 50-3000 rpm
Control Software : No
Stand not included, choose either ST600 or ST800
Maximum torque (N.m) : 0.173
Standard Type, No PC control
PST-102
Order No. 4-2087-02
Rotation Speed : 25-1500 rpm
Control Software : No
Stand not included, choose either ST600 or ST800
Maximum torque (N.m) : 0.43
Standard Type, No PC control
PST-103
Order No. 4-2087-03
Rotation Speed : 5-300 rpm
Control Software : No
Stand not included, choose either ST600 or ST800
Maximum torque (N.m) : 1.73
Standard Type, No PC control
PSTC-101
Order No. 4-2087-04
Rotation Speed : 50-3000 rpm
Control Software : Yes
Stand not included, choose either ST600 or ST800
Maximum torque (N.m) : 0.173
PC Control Type
PSTC-102
Order No. 4-2087-05
Rotation Speed : 25-1500 rpm
Control Software : Yes
Stand not included, choose either ST600 or ST800
Maximum torque (N.m) : 0.43
PC Control Type
PSTC-103
Order No. 4-2087-06
Rotation Speed : 5-300 rpm
Control Software : Yes
Stand not included, choose either ST600 or ST800
Maximum torque (N.m) : 1.73
PC Control Type
ST600 Stand
Order No. : 4-2455-01
Size (mm) : 333 x 272 x 55
Prop Size : Dia. 16 x 600 mm
Material : Cast Iron for base and SUS304 for prop
Base Weight : Approx. 8 kg
ST800 Stand
Order No. : 4-2455-02
Size (mm) : 333 x 306 x 55
Prop Size : Dia. 19 x 800 mm
Material : Cast Iron for base and SUS304 for prop
Base Weight : Approx. 8 kg
