| Wireless Mote | . |
|---|---|
| Operating Temperature Range | -25° to 60°C with rechargeable batteries |
| Radio Power | 12.6 mW (+11 dBm) non-adjustable |
| Transmission Range | Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high |
| Wireless Data Standard | IEEE 802.15.4 |
| Radio Operating Frequencies | 921 Mhz |
| Modulation Employed | OQPSK (Offset Quadrature Phase Shift Keying) |
| Data Rate | Up to 250 kbps, non-adjustable |
| Duty Cycle | <1% |
| Maximum Number of Motes | 50 motes per one RX Wireless Sensor Network |
| Battery Type/ Power Source | Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C |
| Battery Life | With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use |
| Memory | 16 MB |
| Dimension | Sensor: 4.1 cm height x 3.2 cm diameter (1.61 x 1.26 inches) |
| Weight | Sensor and cable: 109 g (3.85 oz) |
| Material | Sensor: Anodized aluminum housing with acrylic diffuser and O-ring seal |
| Environmental Rating | Sensor: Weatherproof |
| Sensor | . |
| Measurement Range | 0 to 1280 W/m2 |
| Spectral Range | 300 to 1100 nm |
| Accuracy | Typically within ±10 W/m2 or ±5%, whichever is greater in sunlight; Additional temperature induced error ±0.38 W/m2/°C from 25°C (0.21 W/m2/°F from 77°F) |
| Angular Accuracy | Cosine corrected 0 to 80 degrees from vertical (see Plot B); Azimuth Error <±2% error at 45 degrees from vertical, 360 degree rotation |
| Resolution | 1.25 W/m2 |
| Drift | <±2% per year |

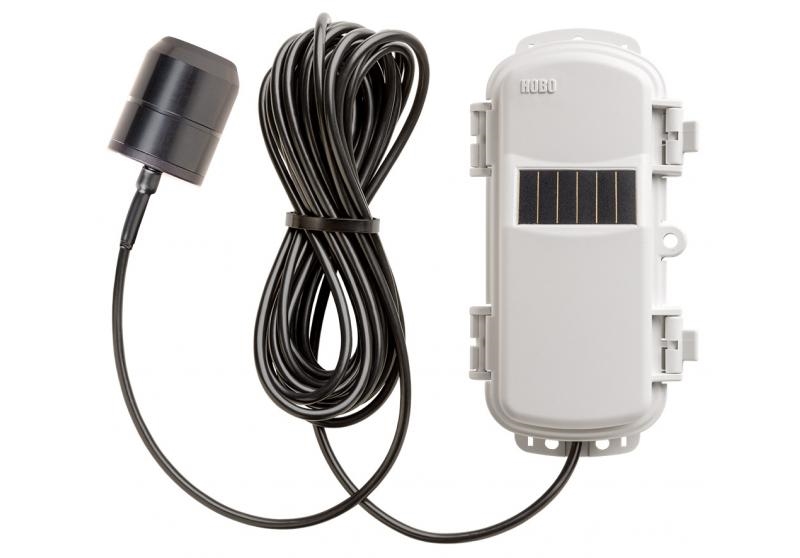

HOBOnet Solar Radiation (Silicon Pyranometer) Sensor
Overview
The HOBOnet Wireless Solar Radiation (Silicon Pyranometer) Sensor is calibrated to measure light intensity for frequencies relevant for solar radiation. HOBOnet Wireless Sensors communicate data directly to the RX Station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.
Sensor Features
- Measurement range of 0 to 1280 W/m2 over a spectral range of 300 to 1100 nm
- Enclosed in an anodized aluminum housing with acrylic diffuser and O-ring seal
Wireless Features
- 921 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX Station
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
In what environment does this sensor operate?
This sensor operates in an outdoor environment.
What measurements does this sensor support?
The RXW-LIB-921 sensor supports the following measurements: Evapotranspiration, Light Intensity and Solar Radiation
Important Info:
A complete system requires at least one HOBO RX Remote Monitoring Station, a HOBOnet Wireless Manager (RXMOD-RXW-921), and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RX-RPTR-921) can be added to extend the range.
