| Operating Range | -20° to 60°C |
|---|---|
| Logging Rate | 1 minute to 18 hours |
| Time Accuracy | ±8 seconds per month in 0° to 40°C range; |
| Battery Type/Power Source | 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel |
| Battery Life/Power Source | Typical 3–5 years when operated in the temperature range -20° to 40°C; operation outside this range will reduce the battery service life. Maximum connection rates with built-in solar panel, in full sun: 10 minute connections year round for latitudes less than ±40° 10 minute connections year round, in full sun |
| Memory | 16 MB, 1 million measurements, continuous logging |
| Alarm Notification Latency | Logging interval plus 2–4 minutes, typical |
| Enclosure Access | Hinged door secured by two latches with eyelets for use with user-supplied padlocks |
| LCD | LCD is visible from 0° to 50°C; the LCD may react slowly or go blank in temperatures outside this range |
| Materials | Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish |
| Dimensions | 19.95 x 13.68 x 7.49 cm |
| Weight | 678 g |
| Mounting | Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws |
| Environmental Rating | Weatherproof enclosure, NEMA 4X and IP66 |
| Wireless Radio | GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz |
| Antenna | 4G LTE |
| CE | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) |

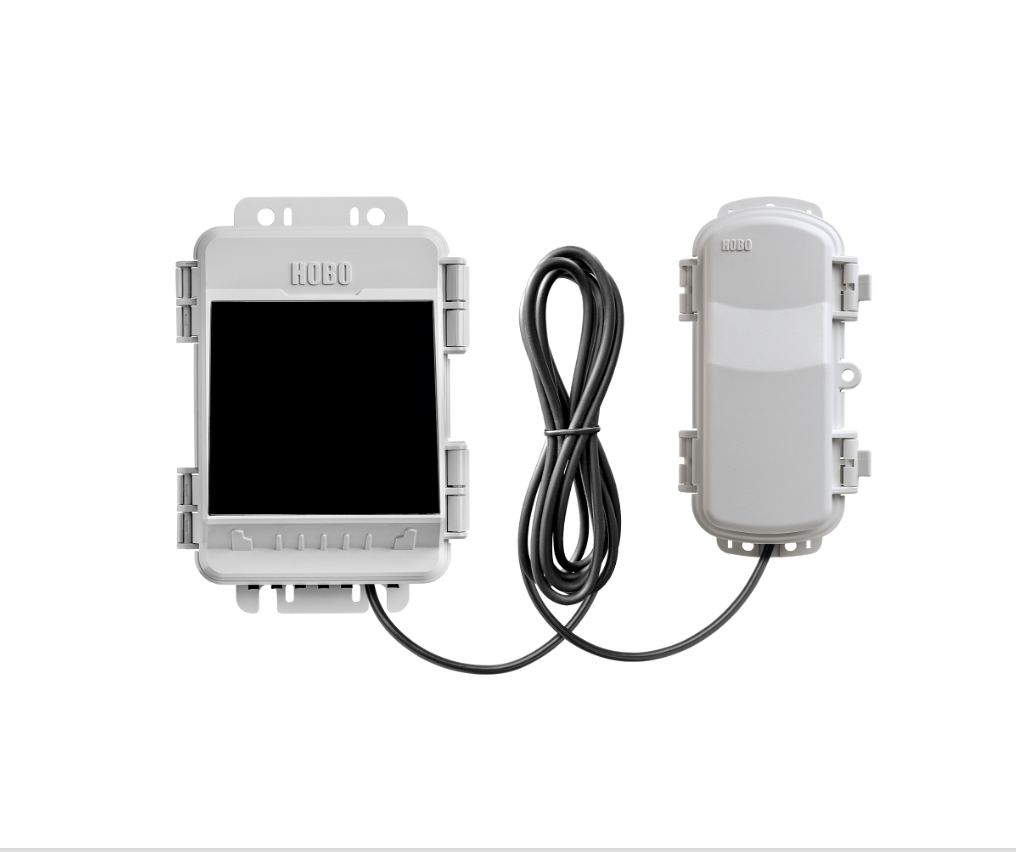

HOBOnet MicroRX Station – RX2106
The compact HOBO MicroRX Station (RX2106) is an easy-to-deploy, low-cost cellular solution for long-term, reliable monitoring of indoor and outdoor conditions in warehouses, cold storage facilities, data centers, museums, commercial and residential buildings, fields, crops and more. The station includes an integrated HOBOnet Manager, for easy deployment with wireless HOBOnet sensors. The station also features inputs for up to five of Onset’s research-grade plug-and-play sensors. Configurable station-side alarms trigger immediate notifications of critical conditions, and Onset’s cloud-based HOBOlink platform makes it easy to view, access, and share data.
Highlighted Features
- Compact size and integrated HOBOnet Manager for easy deployment
- Scalable, with option to connect up to 50 wireless sensors; 600 m line-of-sight range
- Inputs for five plug-and-play sensors
- Includes AC power adapter and user-replaceable AA lithium batteries for battery back-up

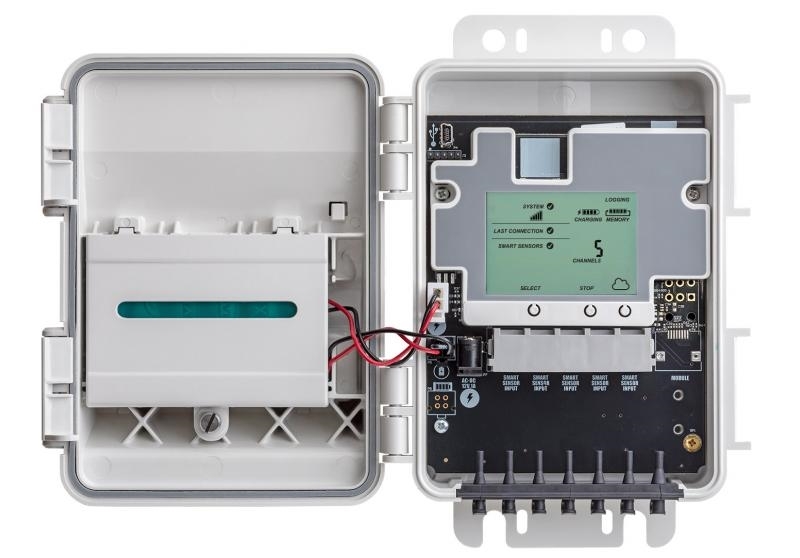

- Built-in LCD confirms proper setup and operation
- Up to 10-minute connection rates via 4G cellular data plans
- Cloud-based monitoring and data access through HOBOlink
- Integrated mounting tabs for use with screws, zip ties, or U-bolts
- Solar Powered
What measurements does this data logger support?
The RX2100 supports the following measurements: Absolute Pressure, 4-20mA, AC Current, AC Voltage, Amp Hour (Ah), Barometric Pressure, DC Voltage, Dew Point, Evapotranspiration, Kilowatt Hours (kWh), Leaf Wetness, Light Intensity, PAR, Power Factor (PF), Pulse Input, Rainfall, Relative Humidity, Soil Moisture, Solar Radiation, Temperature, Volt-Amp Reactive hour, Water Flow, Water Level, Watt Hours (Wh), Watts (W) and Wind
Category
Outdoor Monitoring
