| OPERATING TEMPERATURE | -90 °C … +150 °C |
| ACCURACY | ± 0,5 °C (-90 °C … -40 °C) ± 0,2 °C (-40 °C … 0 °C) ± 0,1 °C (0 °C … +120 °C) ± 0,05 °C (+120 °C … +140 °C) ± 0,1 °C (+140 °C … +150 °C) |
| RESOLUTION | 0,01 °C |
| MEMORY | 100,000 values |
| SENSOR | Pt 1,000, class A |
| SAMPLING RATE | 250 ms … 24 h |
| STORAGE TEMPERATURE | 0 °C … +125 °C |
| MODE |
|
| BATTERY | Lithium battery (3,6 V), user replaceable |
| DIMENSIONS | (Ø x H) 48 mm x 24 mm |
| WEIGHT | approx. 110 g |
| HOUSING MATERIAL | 316 L stainless steel / PEEK |
| PROTECTION CLASS | IP 68 |
| CERTIFICATE | Factory calibration certificate |

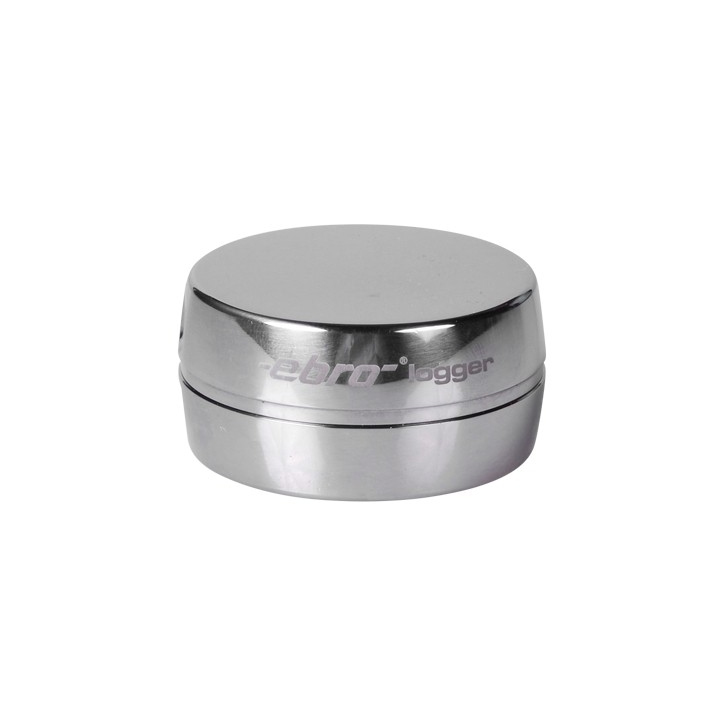

EBRO EBI 12 T-100 Temperature Data Logger
The EBI 12 temperature data logger is offered in various models. Whether with one sensor, with two sensors or with four sensors. Different technologies of the probes opens a wide field of applications.
The loggers are fitted with flexible metal probes or highly flexible cable sensors.
- Pt 1000, Class A technology for high accuracy and long term stability
- Up to four temperature sensors per logger
- Wide temperature range -90 °C … +400 °C
- Resolution 0.01 °C
- Sampling rate 250 ms
- Probe length up to 1200 mm
- Battery replaceable
- Online measurement possible
- Calibration by user
