ULT LAS Fume Extractor for Laser Fumes

SKU: # ULT LAS

Laser Technology is Great, When it stopped Smoking

Lasers are welding metal or plastic components, they are cutting sophisticated contours and they are marking and structuring surfaces. Also printing and medical technologies benefit from laser technologies. But all of them share one problem: laser fume.

Laser fume

No matter, whether processed materials are harmless — laser fume is not. The energy input during processing triggers pyrolytic and oxidation processes. They release a caustic, toxic mix of aerosols, gases and nano particles. The latter are extremely hazardous, as during inhalation they overcome the lung-blood barrier and enter the nervous system. Therefore, legal provisions for removing laser fume from the air at work places, e.g. EC directives concerning fine dust pollution, pose strict requirements. It is about human health, but not only: machinery and products are damaged by laser fume that builds up firmly adhering layers of contamination.

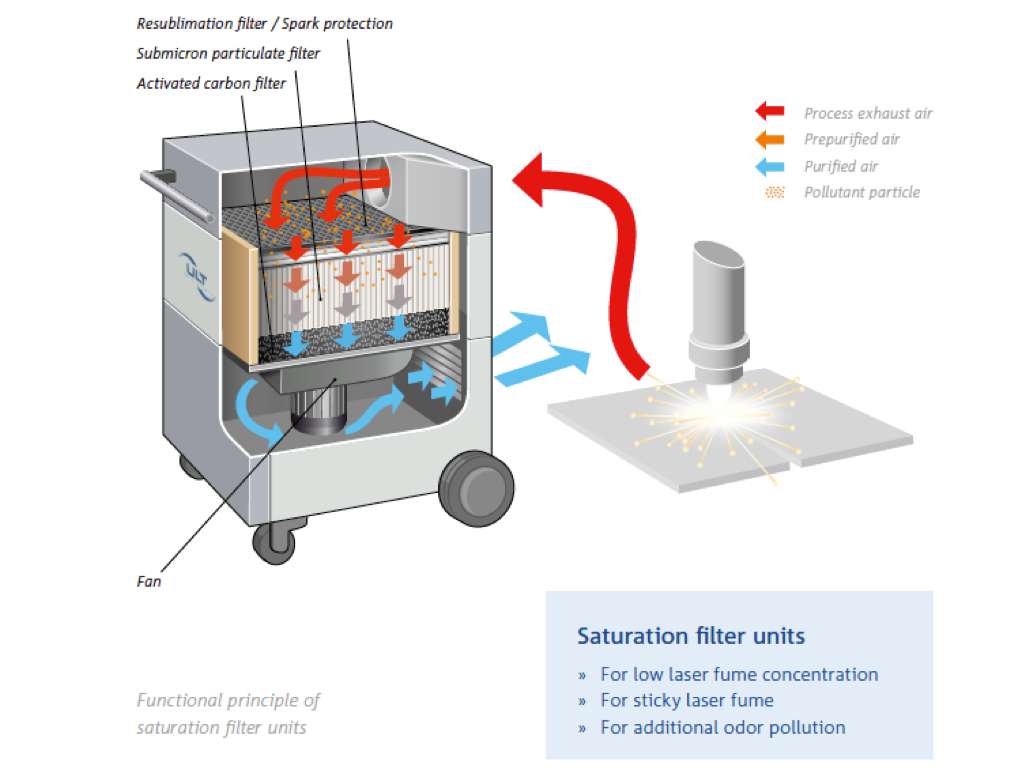

Fume extraction technology

As a result, extraction and filtration technology for laser fume faces high requirements. It is about capturing each and every particle, hence extraction solutions are in demand, which should be positioned as close as possible to the point of origin. The filtration systems must be absolutely safe. Even during exchange. As many laser processes are operated in highly automated volume production environments, a high degree of availability is of concern. ULT’s extraction and filtration technology LAS for laser fume removal meets all these requirements.

Typical fields of application

  • Laser cutting
  • Laser sintering
  • Laser welding
  • Laser marking
  • Laser structuring
  • Laser ablation
  • Medical laser treatment
  • Laser printing

ULT LAS system offers various air flow capacity (m3/hr),  customisable solution to handle laser fumes

Contact Us for Site Visit & Free Consultation !

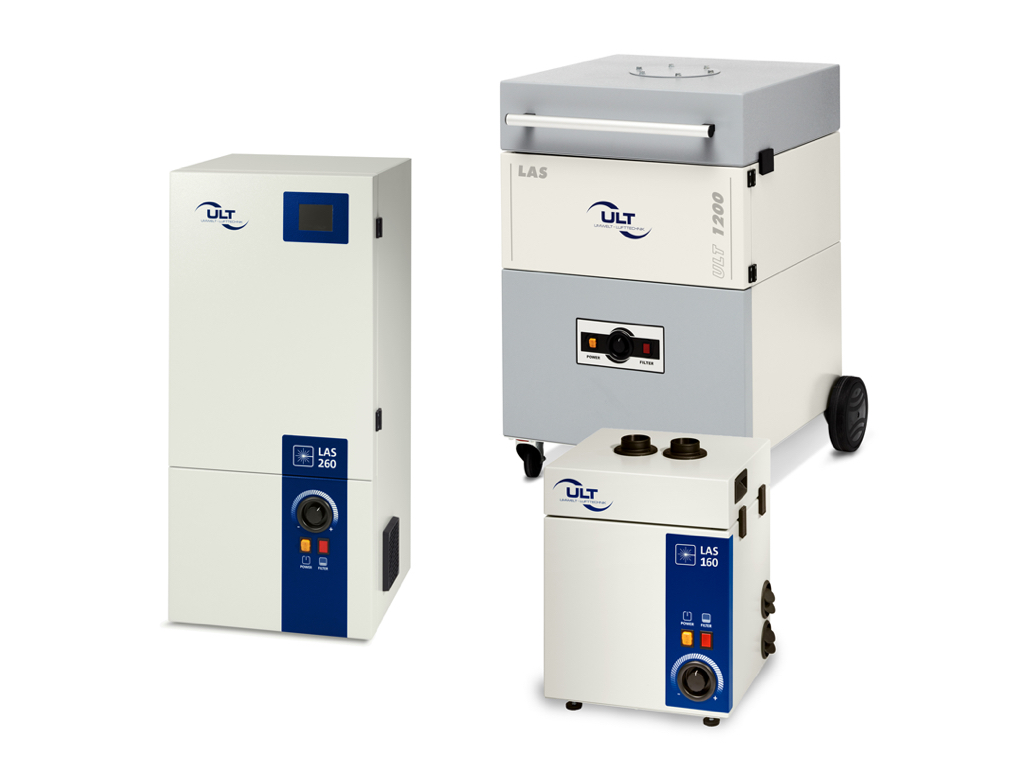

Laser Fume Extraction Models

ULT’s solutions range from mobile equipment for individual work places to automated production :

Model 1 : LAS 160
i. Max Vol. Flow – 190m3/hr
ii. Max Vacuum – 320 Pa
iii. Nominal Capacity – 80/ 1,900 (m3/hr at Pa)

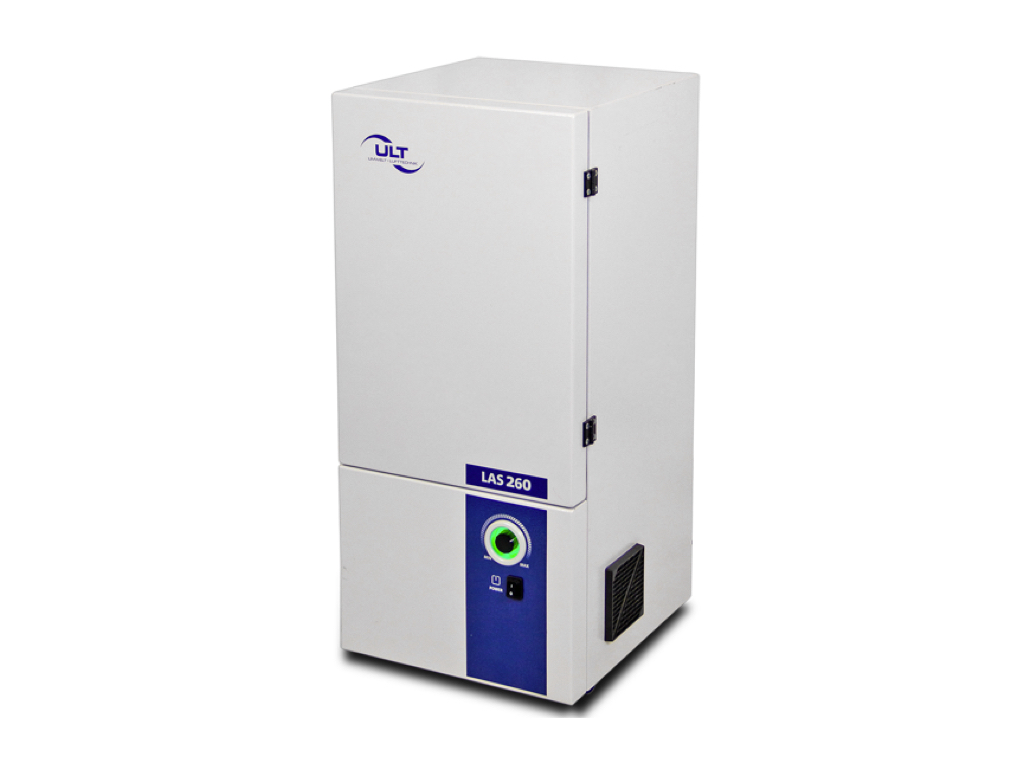

Model 2 : LAS 260
i. Max Vol. Flow – 635m3/hr
ii. Max Vacuum – 3,200 Pa
iii. Nominal Capacity – 250/ 2,000 (m3/hr at Pa)

Model 3 : LAS 400
i. Max Vol. Flow – 1,500m3/hr
ii. Max Vacuum – 3,250 Pa
iii. Nominal Capacity – 600/ 2,500 (m3/hr at Pa)

Model 4 : LAS 1200
i. Max Vol. Flow – 1,500m3/hr
ii. Max Vacuum – 3,250 Pa
iii. Nominal Capacity – 1,000/ 1,700 (m3/hr at Pa)
