Nabertherm Tube Furnace with Stand for Horizontal / Vertical Operation, RT series, 1100-1500°C

SKU: RT series

These compact tube furnaces are used when laboratory experiments must be performed horizontally, vertically, or at specific angles. The ability to configure the angle of tilt and the working height, and their compact design, also make these tube furnaces suitable for integration into existing process systems.

Tmax 1100 °C, 1300 °C, or 1500 °C
Compact design
Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2

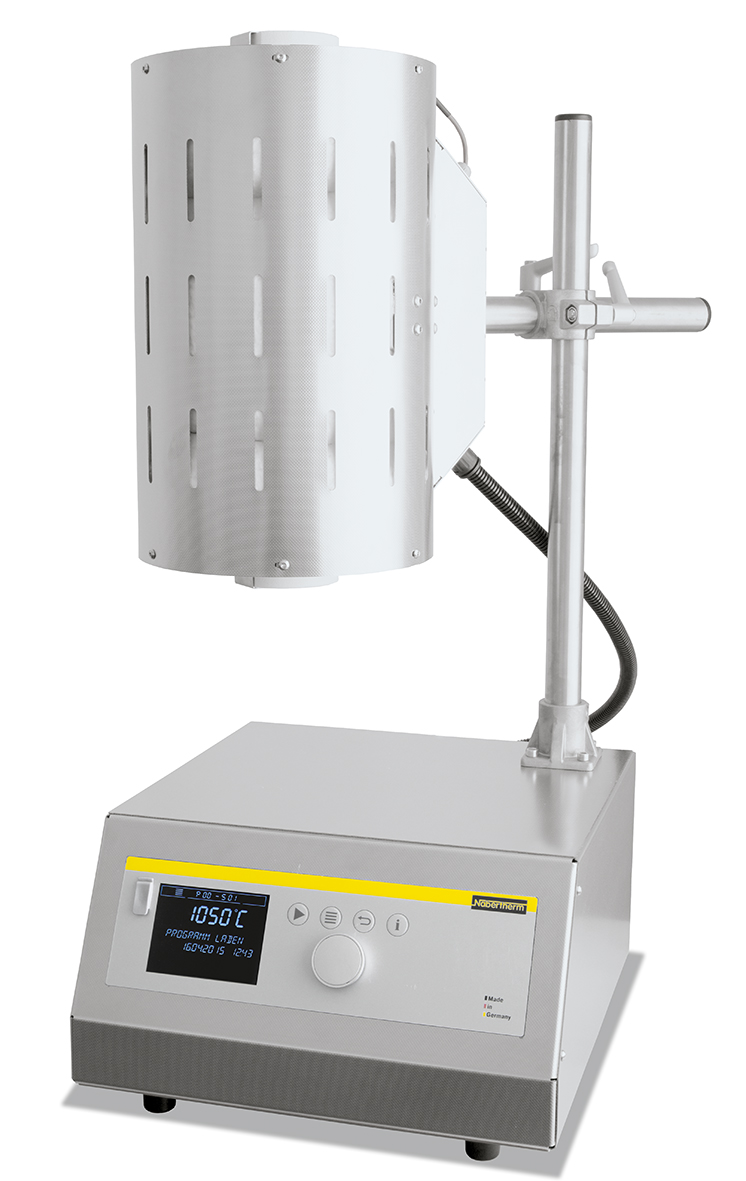

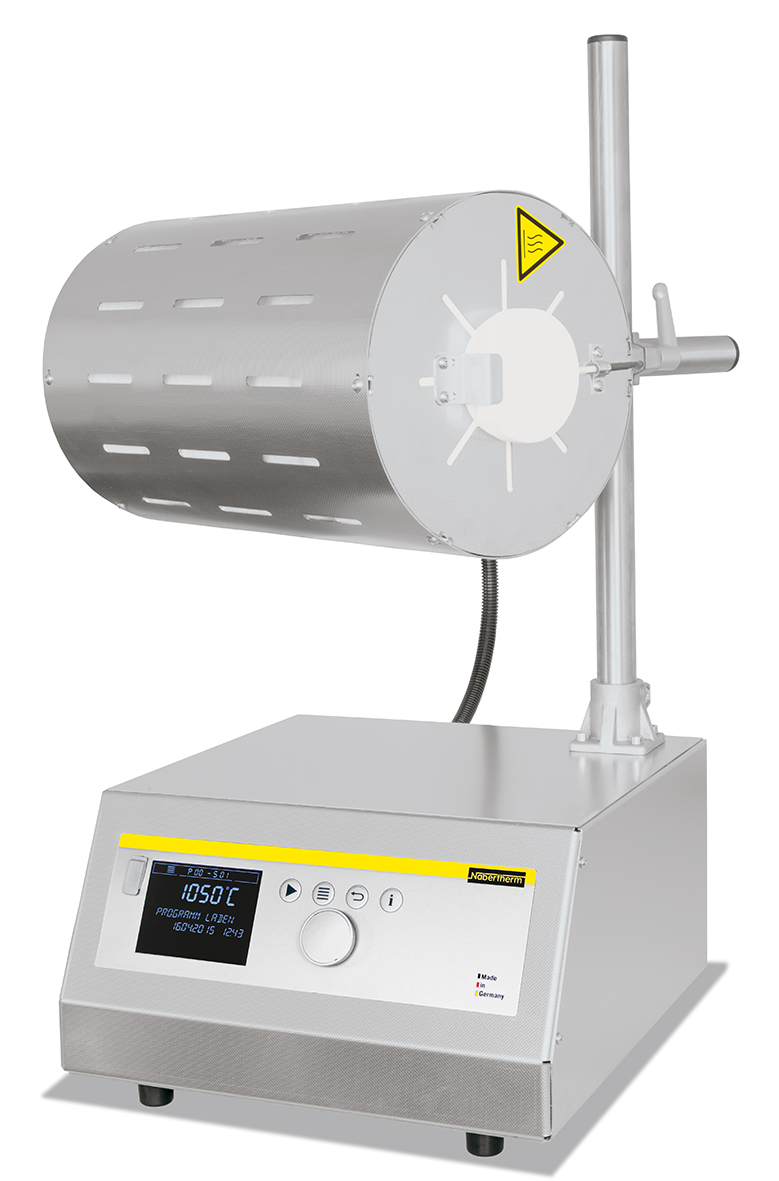

Vertical or horizontal operation freely adjustable
Working height freely adjustable
Working tube made of C 530 ceramic
Type S thermocouple
Operation also possible separate from stand if safety guidelines are observed
Control system integrated in furnace base
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Model	Tmax	Outer dimensions² in mm			Inner tube Ø	Heated	Length constant	Tube length	Connected	Electrical	Weight
	°C	W¹	D	H	in mm	length  in mm	temperature +/- 5 K in mm¹	in mm	load kW	connection*	in kg
RT 50-250/11	1100	350	380	740	50	250	80	360	1.8	1-phase	25
RT 50-250/13	1300	350	380	740	50	250	80	360	1.8	1-phase	25
RT 30-200/15	1500	445	475	740	30	200	70	360	1.8	1-phase	45
