Nabertherm High-Temperature Furnaces with MoSi2 Heating Elements up to 1800°C

SKU: LHT series

Designed as tabletop models, these compact high-temperature furnaces have a variety of advantages. The first-class workmanship using high-quality materials, combined with ease of operation, make these furnaces all-rounders in research and the laboratory. These high-temperature furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconium oxide dental bridges.

Tmax 1600 °C, 1750 °C, or 1800 °C
High-quality molybdenum disilicide heating elements
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
Compact design with lift door, opening upwards
Adjustable air inlet
Exhaust air opening in the roof
Type B thermocouple
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional equipment

Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Square saggar for charging of up to three layers
Protective gas connection to purge with non-flammable protective or reaction gases
Manual or automatic gas supply system
Process control and documentation via VCD software package for monitoring, documentation and control

Model	Tmax	Inner dimensions in mm			Volume	Outer dimensions⁴ in mm			Connected	Electrical	Weight	Minutes
	°C	w	d	h	in l	W	D	H³	load kW	connection*	in kg	to Tmax²
LHT 02/16	1600	90	150	150	2	470	630	760+260	3.0	1-phase	75	30
LHT 04/16	1600	150	150	150	4	470	630	760+260	5.2	3-phase¹	85	25
LHT 08/16	1600	150	300	150	8	470	810	760+260	8.0	3-phase¹	100	25

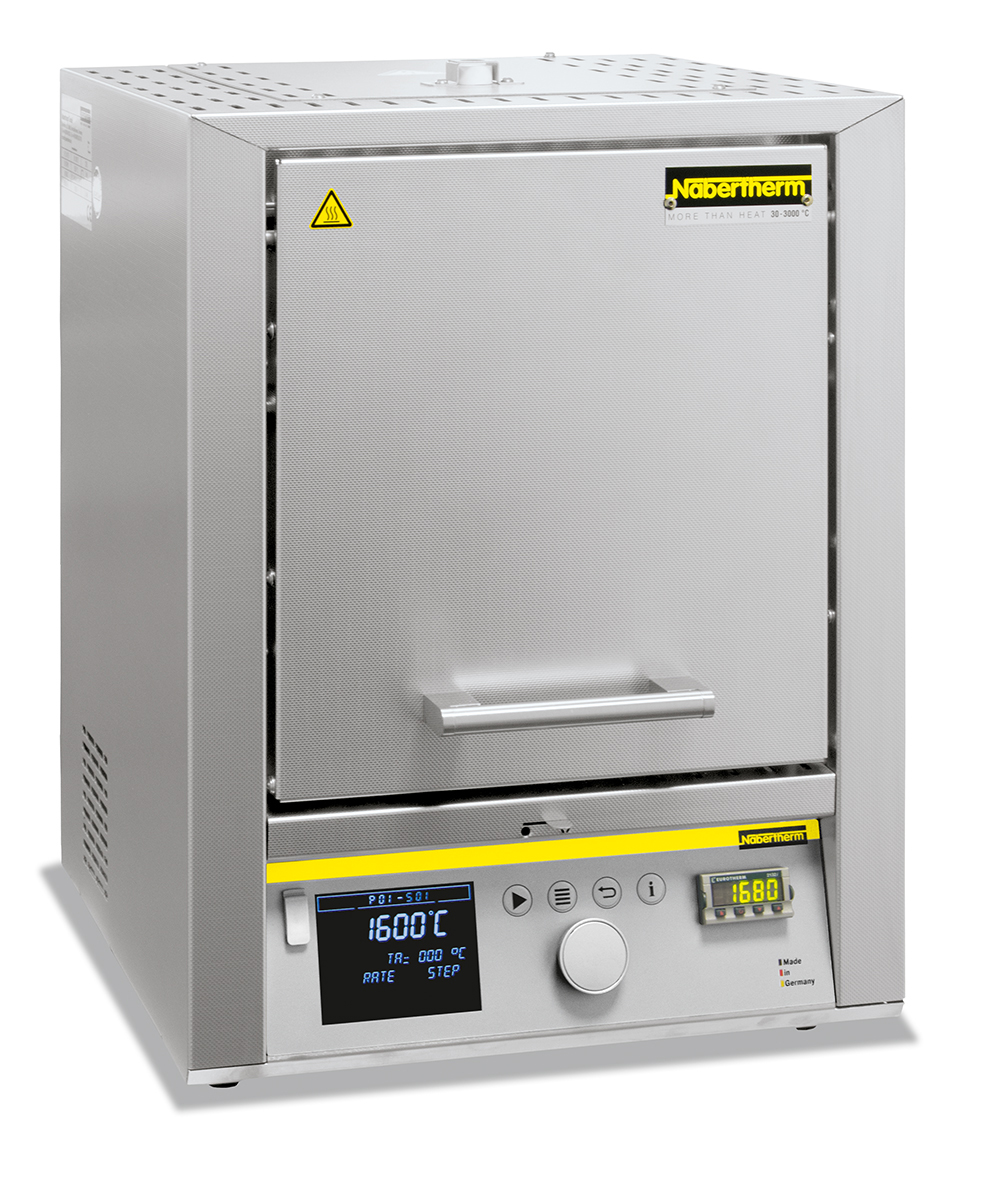

LHT01/17D	1650	110	120	120	1	385	425	525+195	2.2	1-phase	28	10

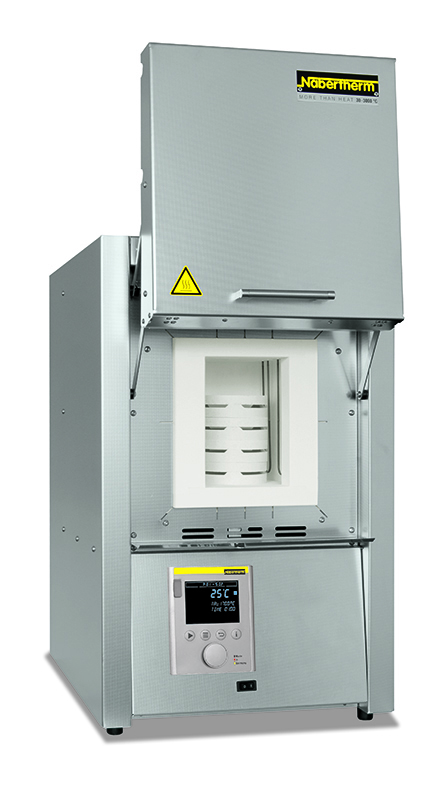

LHT03/17D	1650	135	155	200	4	470	630	760+260	3.0	1-phase	75	60

LHT 02/17	1750	90	150	150	2	470	630	760+260	3.0	1-phase	75	60
LHT 04/17	1750	150	150	150	4	470	630	760+260	5.2	3-phase¹	85	40
LHT 08/17	1750	150	300	150	8	470	810	760+260	8.0	3-phase¹	100	40

LHT 02/18	1800	90	150	150	2	470	630	760+260	3.6	1-phase	75	75
LHT 04/18	1800	150	150	150	4	470	630	760+260	5.2	3-phase¹	85	60
LHT 08/18	1800	150	300	150	8	470	810	760+260	9.0	3-phase¹	100	60
