| Sensor type | Chilled mirror dew point and capacitive hygrometer |
|---|---|
| Water activity | Range: 0.030–1.000 aw |
| Moisture content | Accuracy: 0.1%–0.5% to moisture content reference |
| Temperature | Controlled at constant: 25 °C |
| Measurement time | Minimum: 60 s (One-Minute Water Activity Mode; subscription required) |
| Sample cup capacity | 7.5 mL (0.25 fl oz), partially full, recommended |
| Display | iPad |
| Data communications | USB A to USB B |
| Case dimensions | Length: 23.4 cm (9.2 in) |
| Case material | Polycarbonate-ABS (PC-ABS) |
| Weight | 5 kg (11 lb) |
| Operating temperature | Minimum: 15 °C |
| Operating environment | 0 to 90% relative humidity (noncondensing) |
| Universal power | 110–240 VAC |
| Compliance | Manufactured under ISO 9001:2015 |

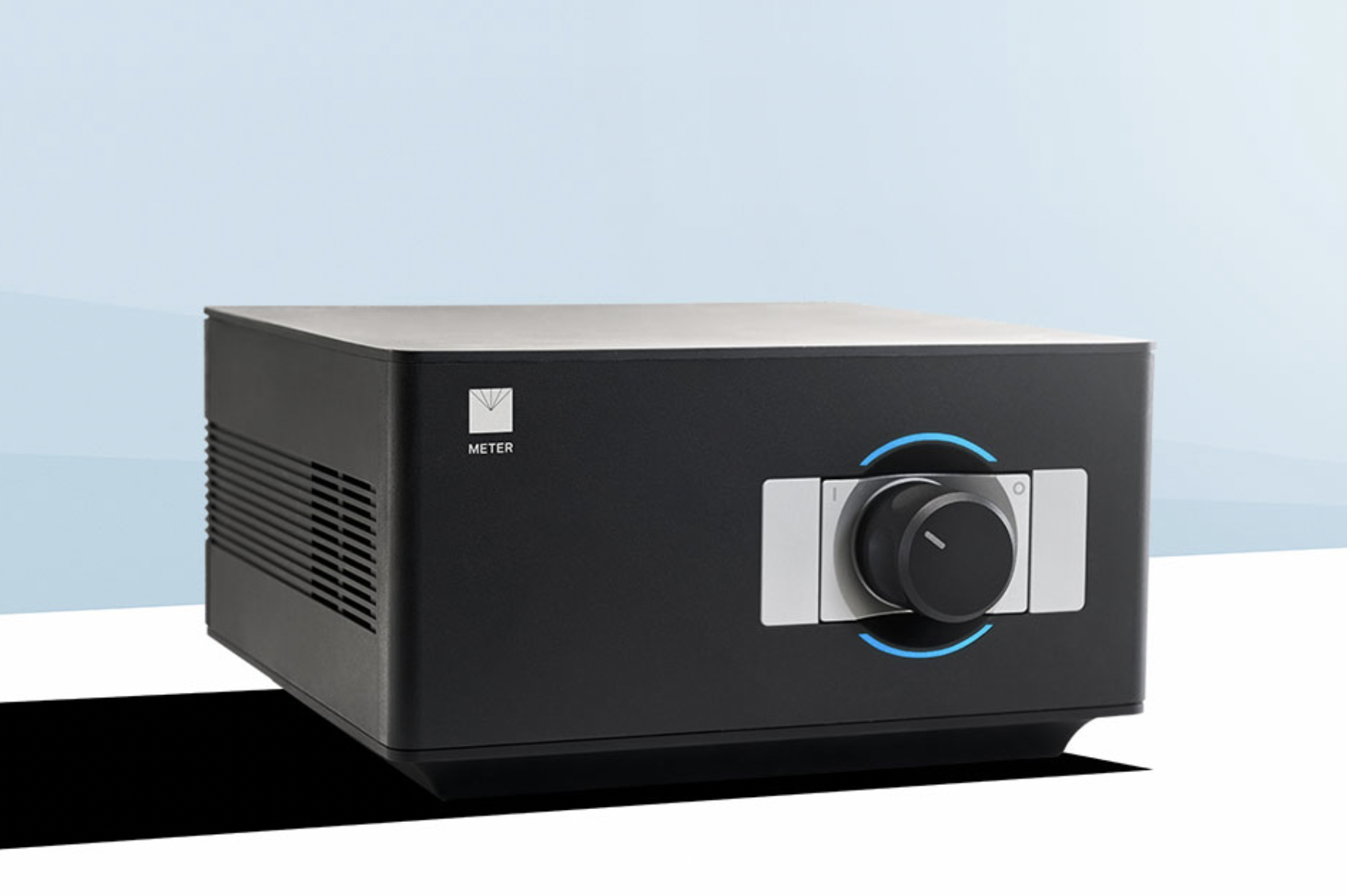

METER AQUALAB 3 (AQ3), Water Activity + Moisture Content Meter
ONE MINUTE WATER ACTIVITY
Water activity + moisture content in one minute
The speed challenge
Normally, measuring water activity takes a significant amount of time. The sample must come to equilibrium with the air in the headspace above the sample before a reading can be taken. Depending on the sample, that can take 2-5 minutes—even longer for coated products and products high in fat. There hasn’t been a way around “equilibrium time” or “dwell time.” Until now.
Fast answers, no waiting
The new AQUALAB 3 breaks the speed barrier. Using SKALA-powered predictive AI, it delivers both water activity and moisture content readings on a single sample in one minute.
Clear shipments quickly
AQUALAB 3 lets you know within one minute whether the batch will pass or fail. Quickly test as many samples as you need to establish a robust testing protocol and accurately predict in-package water activity. Don’t wait for answers—clear shipments quickly and avoid logistical snarls.
Avoid rework and scrapped batches
Make fast decisions at the line to address issues before your process goes out of control. Get “outside operating limits” indicators within 60 seconds and use the predicted final values to adjust belt speed, oven temperatures, water content in dough, and other parameters before they result in rework or scrap. Fast water activity measurements offer the most precise way to monitor and control moisture at the line.
Speed changes everything
One minute water activity offers options you’ve never had before for robust and rapid pass/fail determination, tighter process control capability, and rock-solid indicators to clear shipments on time.
