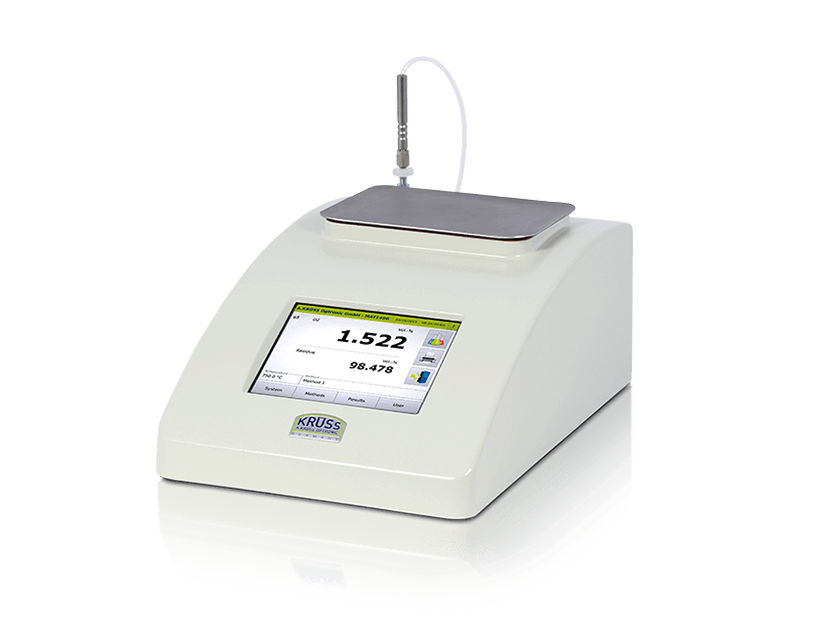

Gas Analyzer for Highly Accurate 02 Measurement MAT1400

SKU: MAT1400

For high O2 concentrations and high sample volume

The zirconium dioxide sensor (ZrO2) of the MAT1400 measures the oxygen concentration over the entire measurement range between 0 and 100 volume per cent. Especially in case  of a very low concentration, it will achieve an excellent accuracy of ±0.001 volume per cent. The MAT1400 is therefore suitable for the inspection of oxygen-free as well as oxygen-rich modified atmospheres. It can also be used in the cold storage room from ambient temperatures of 10 °C.


Because of its excellent accuracy of ±0.001 volume per cent with the lowest O2 concentrations, the MAT1400 with its zirconium dioxide sensor is primarily used to test oxygen free modified atmospheres for sterilised finished products or electronic, pharmaceutical or cosmetic products. Thanks to its wide measurement range between 0 and 100 volume per cent, it can also be used for high oxygen concentrations as required for red fresh meat. The investment in the zirconium dioxide sensor will quickly pay off if many samples are measured every day due to the long service life of up to 15 years. Thanks to the fast response time of 0.3 seconds, only very little sample gas is required – an advantage especially in case of a small headspace volume as it is common with sachets and cosmetics products. The cross-sensitivity of the sensor toward humidity and temperature is low. A regular adjustment is not necessary because it is free of drift. Typical applications are the control of oxygen concentration in particularly oxygen-sensitive and sterilized products and products with high oxygen concentration, such as:

  • Fresh meat
  • Sausages
  • Dried foods
  • Milk powder
  • Fruit juices
  • Yogurt and dairy products
SCALES Oxygen, any number of user-defined scales
Oxygen (O2)
ACCURACY ±0.001 vol% (< 1 vol%)
±0.01 vol% (< 6 vol%)
±0.1 vol% (< 35 vol%)
±0.4 vol% (> 35 vol%)
RESOLUTION 0.001 vol%
TYPE Zirconium dioxide sensor (ZrO2)
MEASUREMENT PRINCIPLE Potentiometric measurement
CROSS-SENSITIVITY Cross-sensitive toward inflammable gases
DRIFT Drift-free
